Brazed Plate Heat Exchanger

Product Overview

The Brazed Plate Heat Exchanger (BPHE) is a high-performance heat transfer solution designed to meet the demands of a wide range of industrial, commercial, and residential applications. Engineered for maximum thermal efficiency and compactness, this heat exchanger is ideal for systems where space, energy conservation, and reliable performance are top priorities. Through a combination of advanced materials and an innovative brazing technique, the BPHE provides exceptional thermal conductivity, a durable structure, and seamless integration into systems ranging from HVAC units to refrigeration circuits.

Key Features

1. Superior Thermal Performance

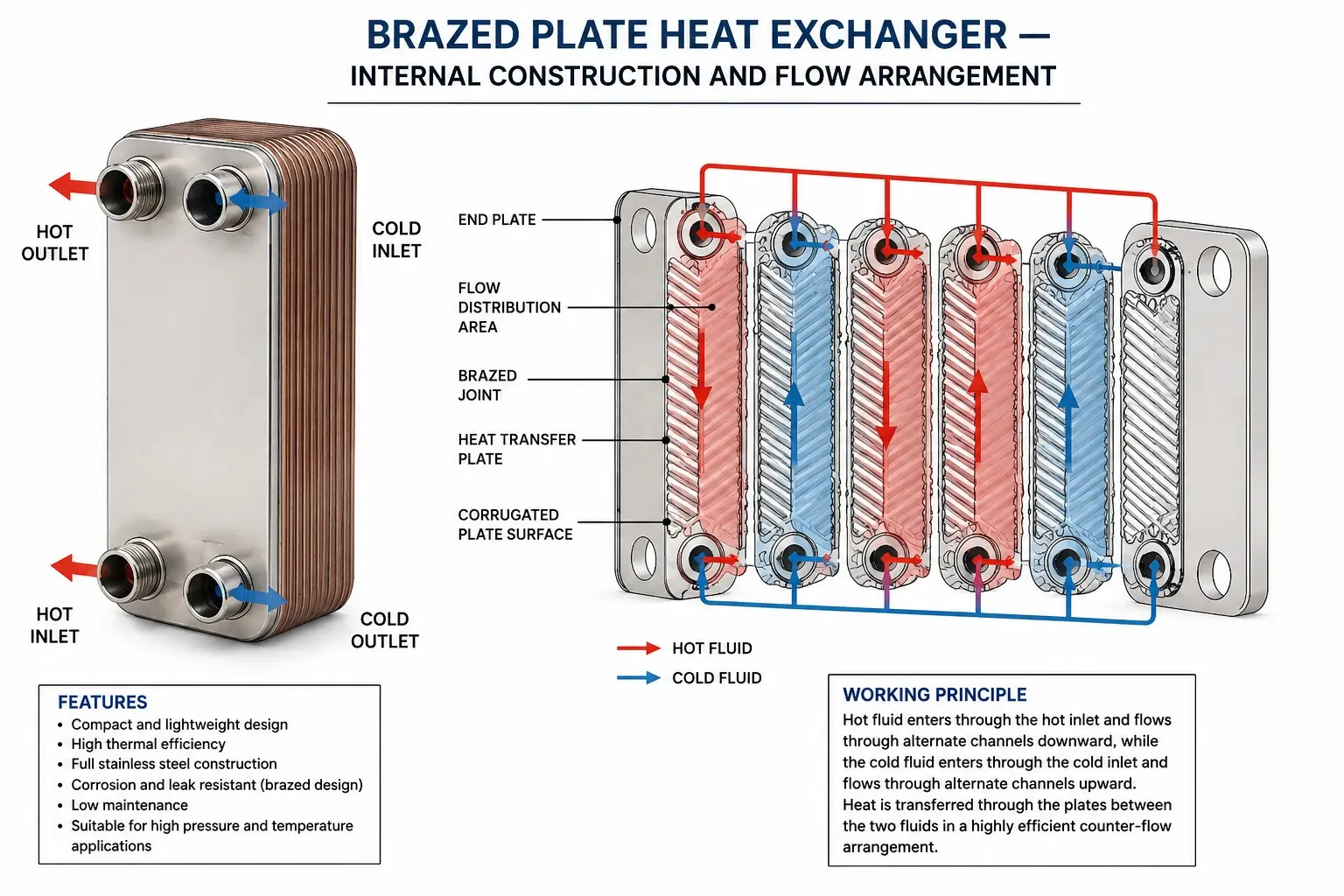

The Brazed Plate Heat Exchanger utilizes a series of corrugated, laser-welded plates that form alternating flow channels. This design maximizes heat transfer surface area while promoting turbulence in the fluid flow, significantly enhancing heat exchange efficiency. The countercurrent flow arrangement ensures that the temperature differential between the fluids remains optimal, leading to faster heat exchange and reduced thermal resistance.
2. Brazing Technology for Leak-Free Operation
Each heat exchanger is created by brazing multiple plates together using a specialized alloy, typically copper or nickel, which forms a strong, leak-proof bond. This process eliminates the potential for gasket degradation and guarantees leak-free performance in high-pressure and high-temperature environments. The brazing method also minimizes maintenance downtime and reduces the likelihood of system failures due to leakage.
3. Compact Design with High Capacity
Despite its small footprint, the BPHE is designed to handle high heat loads. The BPHE is a useful tool in situations where size is an important consideration because of its capacity to fit a large surface area into a compact form, which enables effective heat transmission in limited places.
4. Stainless Steel Construction for Durability and Corrosion Resistance
The plates of the BPHE are constructed from high-quality stainless steel, providing superior resistance to corrosion, scaling, and abrasion. This durability ensures long-lasting performance, even when exposed to harsh fluids or extreme environmental conditions. Stainless steel construction also guarantees resistance to chemical degradation, making the BPHE ideal for industries dealing with aggressive chemicals or high temperatures.
5. No Gaskets, No Worries
BPHEs do not use gaskets for sealing, eliminating the common issues related to gasket wear, contamination, and fluid leakage. The gasket-free design increases the reliability and lifespan of the heat exchanger, as there are no seals that degrade over time. This makes it an ideal solution for critical applications where system integrity is paramount.
6. Scalable and Modular System
The BPHE is highly customizable. The number of plates can be increased or decreased to meet specific capacity requirements, allowing for modular scalability. This scalability ensures that the BPHE can adapt to a wide range of applications, from small-scale heating systems to large industrial cooling units.
7. Energy Efficiency and Reduced Operating Costs
The high thermal efficiency of BPHEs results in reduced energy consumption and lower operating costs. By efficiently transferring heat with minimal thermal loss, the BPHE helps systems to run more efficiently, leading to significant savings in energy consumption over the long term. This efficiency makes BPHEs a key component in energy-conscious systems, particularly in the context of sustainability and green energy solutions.

Heat Exchanger Specifications

Parameter	Value
Heat Transfer Area	1 m² to 400 m² (customizable depending on requirements)
Flow Rate	Up to 50,000 L/hr per unit (variable based on design)
Max Operating Pressure	45 bar (4500 kPa)
Max Operating Temperature	200°C (392°F)
Materials	Stainless Steel (316L, 304L), Copper, Nickel
Plate Thickness	0.4 mm to 1.2 mm (depending on model)
Connections	1” to 6” flange options
Plate Pattern	Chelvron or herringbone (varied to optimize heat transfer)
Brazing Alloy	Copper or Nickel (custom options available)

Applications

• HVAC Systems
In HVAC applications, the BPHE is used for heat recovery, air conditioning, and heating systems. Its compact design and high thermal efficiency ensure rapid heat exchange while minimizing the size and weight of HVAC equipment. This makes BPHEs ideal for residential, commercial, and industrial HVAC systems where energy efficiency and space constraints are critical.
• Refrigeration
BPHEs are integral components of refrigeration systems, especially in commercial refrigeration, cold storage, and ice-making units. The exchanger’s ability to manage high-pressure refrigerants and maintain thermal efficiency even under fluctuating load conditions ensures consistent performance in temperature-sensitive environments.
• Chemical and Pharmaceutical Processes
In chemical and pharmaceutical industries, BPHEs are used in reaction cooling, pasteurization, sterilization, and other temperature-critical processes. The corrosion-resistant materials ensure that aggressive chemicals or pharmaceutical products do not affect the heat exchanger’s integrity. Additionally, the compact size and ability to handle high thermal loads make BPHEs perfect for these high-performance applications.
• Food and Beverage Industry
BPHEs are extensively used in food processing plants for pasteurizing, cooling, and sterilizing products. Their hygienic, gasket-free design is ideal for maintaining the integrity of food products while ensuring maximum heat transfer efficiency. Their ability to operate at high pressures also ensures that processes such as milk pasteurization and juice sterilization are both efficient and safe.
• Power Generation and Renewable Energy
BPHEs are increasingly being utilized in power generation, including geothermal, biomass, and solar thermal systems. Their high efficiency in transferring heat between fluids is essential in renewable energy applications where energy conservation and optimized heat cycles are key to performance.
• Marine and Offshore
In the marine sector, BPHEs are used in cooling and heating systems for ships, oil rigs, and offshore platforms. Their compact size is crucial in environments with limited space, and their ability to withstand extreme conditions ensures reliable performance in these high-demand applications.

Benefits

• Unmatched Heat Transfer Efficiency: High surface area and turbulent flow increase heat exchange rates, improving system efficiency.
• Energy and Space Savings: Compact design reduces energy consumption and saves valuable space, making BPHEs a perfect fit for tight spaces.
• Minimal Maintenance: The lack of gaskets and welded seams significantly reduces the risk of leaks, cuts down on maintenance costs, and extends operational lifespan.
• Corrosion and Scaling Resistance: Stainless steel construction ensures that BPHEs maintain peak performance, even in chemically aggressive or harsh environments.
• Scalability: BPHEs are highly customizable, enabling them to scale in capacity to suit diverse applications, from small units to large industrial systems.

Why Choose Our Brazed Plate Heat Exchangers?

• Innovation: With advanced brazing techniques and material selection, our BPHEs offer exceptional thermal efficiency and durability that outperforms conventional heat exchangers.
• Customization: Tailored to your specifications, ensuring that each BPHE fits perfectly with your application’s needs, whether in size, heat load, or fluid type.
• Reliability: Designed to operate continuously under extreme conditions without compromising performance or safety, ensuring reliable operation in critical applications.
• Global Expertise: With decades of experience in heat transfer technology, we provide unparalleled technical support, helping you optimize system designs and maintain operational efficiency.

Conclusion

The Brazed Plate Heat Exchanger is a versatile, high-efficiency solution for businesses and industries requiring superior heat transfer in a compact design. Whether for HVAC systems, refrigeration units, or chemical processes, the BPHE delivers unmatched performance, durability, and reliability. Its energy efficiency, minimal maintenance, and scalability make it the ideal choice for companies looking to reduce operating costs, maximize space, and enhance their thermal systems.

Frequently Asked Questions (FAQ)

1. What is a Brazed Plate Heat Exchanger (BPHE)?
A BPHE is a compact heat transfer device made of corrugated stainless-steel plates that are brazed together to efficiently exchange heat between two fluids.
2. What are the key advantages of BPHEs?
• Compact size
• Energy efficiency
• Durability (no gaskets or welding)
• Customizable capacity
• Leak-proof construction
3. What industries use BPHEs?
The chemical, power generating, refrigeration, food processing, HVAC, and pharmaceutical sectors all employ BPHEs.
4. What fluids can be used with a BPHE?
BPHEs can handle water, oils, refrigerants, chemicals, and glycol mixtures, making them highly versatile.
5. What is the maximum pressure and temperature BPHEs can handle?
BPHEs can withstand up to 45 bar pressure and 200°C temperature, depending on the model.
6. Can BPHEs be customized for specific needs?
Yes, BPHEs are scalable, with the number of plates adjustable to meet various capacity, heat load, and space requirements.
7. Are BPHEs easy to maintain?
Yes, BPHEs require minimal maintenance due to their durable, gasket-free design and resistance to corrosion and scaling.
8. What is brazing, and why is it used in BPHEs?
Brazing is a process that bonds the plates with a metal alloy (copper or nickel), ensuring leak-proof performance and better heat transfer.
9. How long do BPHEs last?
BPHEs typically last 10-15 years with proper maintenance, thanks to their durable stainless-steel construction and leak-proof brazing.
10. What are the energy efficiency benefits of BPHEs?
BPHEs enhance energy efficiency by providing high thermal performance, reducing energy consumption and lowering operating costs.
11. Can BPHEs be used for both heating and cooling?
Yes, BPHEs are suitable for both heating and cooling applications, including in heat pumps and refrigeration systems.
12. What’s the difference between BPHEs and other heat exchangers?
BPHEs are more compact, energy-efficient, and leak-proof compared to traditional shell-and-tube heat exchangers.
13. Are BPHEs suitable for high-pressure environments?
Yes, BPHEs are designed to handle high pressures, making them ideal for demanding industrial applications.
14. How do I select the right BPHE for my application?
Consider factors like heat load, fluid type, temperature, pressure, and space requirements. Contact us for expert assistance.
15. Are BPHEs environmentally friendly?
Yes, BPHEs promote sustainability by reducing energy consumption and helping cut down carbon emissions in various applications.
