Air fin coolers, also known as air-cooled heat exchangers, are essential components in various industrial applications. These systems effectively manage excess heat by using ambient air to cool process fluids.
At United cooling systems, we specialize in designing and manufacturing high-quality air fin coolers that cater to the needs of industries where water is scarce. This guide will explore the features, benefits, and applications of air fin coolers, providing you with step-by-step solutions.
What is an Air Fin Cooler?

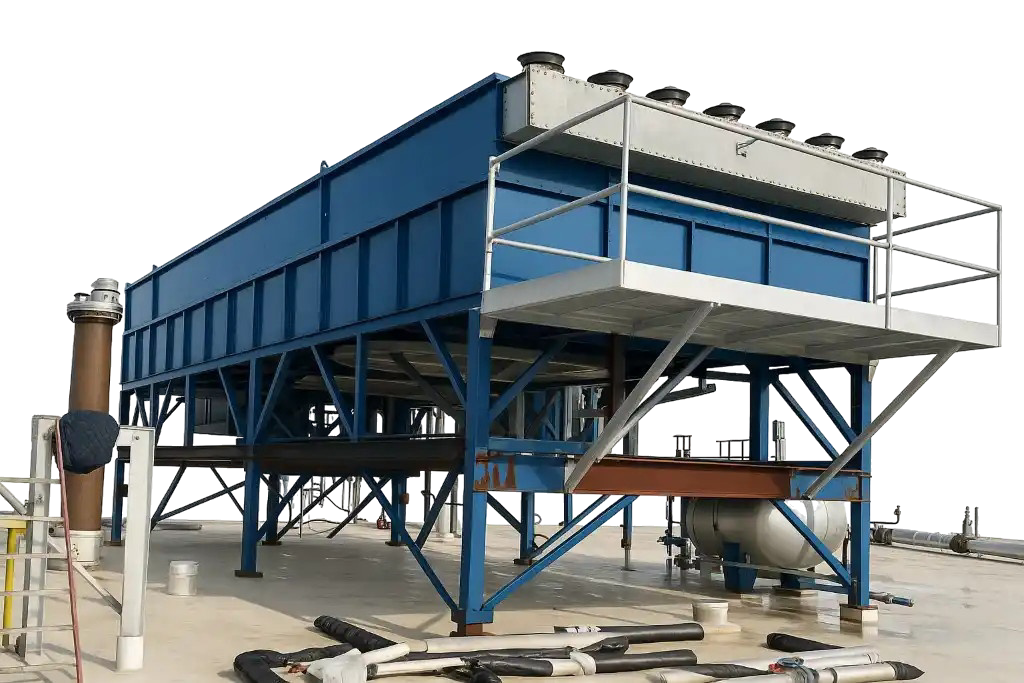

An air fin cooler is a type of heat exchanger that utilizes ambient air for cooling hot fluids. The design typically includes finned tubes through which the fluid flows while fans blow air over these tubes.
This process enhances heat transfer efficiency by increasing the surface area available for cooling. Air fin coolers are widely used in sectors such as petrochemical processing, power generation, and HVAC systems.
Key Components of Air Fin Coolers
Understanding the main components of an air fin cooler is essential for selecting the right unit for your needs. Each part plays a crucial role in ensuring efficient heat exchange and cooling performance. Here’s a detailed breakdown of the key components:
| Component | Description |
|---|
| Finned Tubes | At the core of the air fin cooler are finned tubes. The surface area available for heat transfer is greatly increased by the extended surfaces of these tubes. By enhancing the contact area between the hot fluid and ambient air, finned tubes improve cooling efficiency, allowing for more effective heat exchange. Common materials for these tubes include aluminum and carbon steel, which provide excellent thermal conductivity and corrosion resistance. |

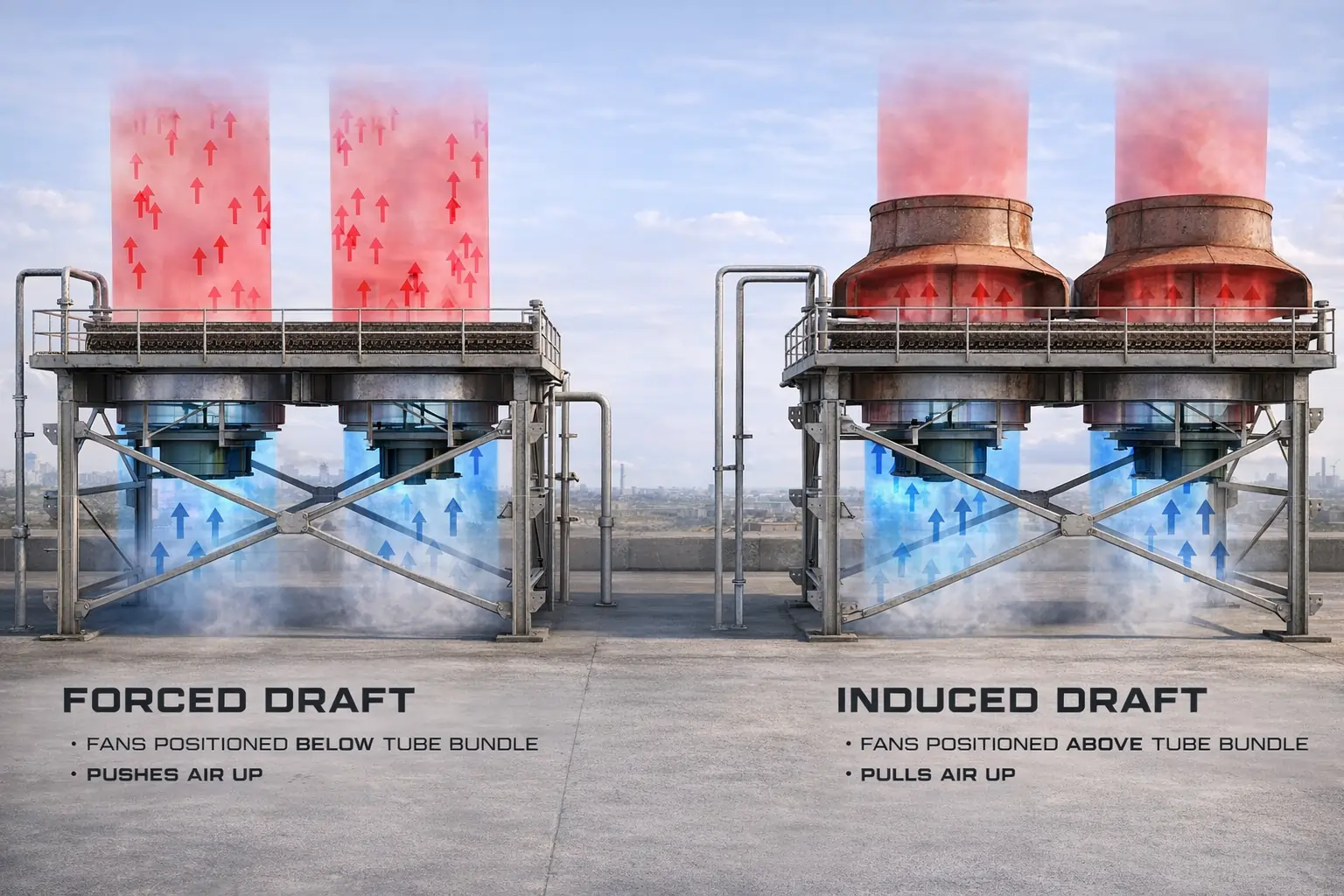

| Fans | Fans are critical devices that move air across the finned tubes, enhancing cooling. Depending on the design, fans can be configured in two main systems: The supporting framework ensures stability in outdoor installations, protecting against environmental factors like wind and seismic forces. Made from durable materials such as steel or aluminium, it provides strength and resilience to maintain structural integrity in harsh conditions. The choice between these systems affects airflow dynamics and cooling performance. |
| Headers | Headers connect multiple finned tubes and direct fluid flow into and out of the cooler. They serve as entry and exit points for the hot fluid, ensuring efficient heat exchange across the entire system. Properly designed headers minimize pressure drop and maximize fluid flow efficiency, contributing to optimal thermal performance. |
| Support Structure | The support structure provides stability and support for the entire assembly of the air fin cooler. The support framework is critical for ensuring the stability of outdoor systems, especially in areas subject to harsh environmental conditions such as high winds or seismic activity. Constructed from resilient materials like steel or aluminum, it is engineered to withstand these forces, providing long-term durability and preventing damage to the unit. This structure ensures that the equipment remains secure and fully functional, even in challenging conditions. |
| Plenums | Plenums are essential components that aid in effectively directing airflow across the fins. By serving as distribution chambers, they guarantee even airflow across the cooling surface, avoiding hot spots and guaranteeing steady cooling results. Well-designed plenums maximize the fins' exposure to moving air, increasing the air fin cooler's overall effectiveness. |
| Cooling Medium | The cooling medium refers to the fluid being cooled within the finned tubes. This can be any hot process fluid, such as hydraulic oil or water, depending on your application requirements. Understanding your cooling medium is crucial for selecting an appropriate air fin cooler that meets your thermal management needs. |
| Electric Heaters | In some applications, electric heaters may be integrated into air fin coolers to preheat fluids before they enter the system or to maintain desired temperatures during colder ambient conditions. This feature ensures optimal operation even in varying environmental conditions. |
How Do Air Fin Coolers Work?
- Fluid Entry: The hot fluid enters through the headers into the finned tubes.
- Heat Exchange: As the fluid circulates, ambient air is blown over the fins, cooling the fluid inside.
- Fluid Exit: The cooled fluid exits through the headers, ready for use in your process.
Benefits of Using Air Fin Coolers
Air fin coolers offer numerous advantages for industrial applications:
- Water Conservation: They significantly reduce water usage compared to traditional water-cooled systems.
- By eliminating water discharge, they minimize environmental pollution.
- Suitable for various applications, including oil cooling and gas processing.
Common Applications of Air Fin Coolers
Air fin coolers are widely used across different industries:
- Petrochemical Plants: For cooling lube oils and hydraulic fluids.
- Power Generation: In cooling systems for turbines and generators.
- Natural Gas Processing: To manage temperatures during gas compression.
- Food and Beverage Industry: Critical for pasteurization and refrigeration processes.
Selecting the Right Air Fin Cooler
Choosing the right air fin cooler involves considering several factors:
- Cooling Capacity: Determine the required cooling load based on your process needs.
- Ambient Conditions: Assess temperature ranges and environmental factors that may affect performance.
- Material Selection: Choose materials that resist corrosion, such as carbon steel or stainless steel.
At United Cooling Systems, we provide tailored solutions to ensure you select the best air fin cooler for your specific requirements.
Installation Steps for Air Fin Coolers
Proper installation ensures optimal performance:br>
- Site Preparation: Ensure a stable foundation that can support the weight of the cooler.
- Mounting: Securely attach the cooler using appropriate mounting hardware.
- Connections: Connect inlet and outlet pipes to the headers without leaks.
Maintenance Tips for Longevity
Regular maintenance extends the lifespan of your air fin cooler:
- Cleaning Fins Regularly: Use a tube cleaner to remove dirt and debris to maintain airflow efficiency.
- Inspect Fans: Check for wear and ensure they operate smoothly.
- Monitor Fluid Levels: To avoid overheating, check fluid levels frequently.
At United Cooling Systems, we recommend establishing a cleaning schedule based on operational conditions to maintain peak performance.
Troubleshooting Common Issues
If you encounter problems with your air fin cooler, consider these solutions:
- Reduced Cooling Efficiency: Check for blockages in airflow or dirty fins.
- Unusual Noises from Fans: Inspect fan blades for damage or misalignment.
- Leaks from Headers: Tighten connections or replace faulty seals.
Understanding Different Types of Heat Exchangers
In addition to air fin coolers, there are other types of heat exchangers worth mentioning:
- Plate type heat exchanger: These utilize thin plates to transfer heat between two fluids efficiently.
- Finned tube heat exchanger: These enhance heat transfer by increasing surface area with fins attached to tubes.
- Cooling Towers: Used primarily in large industrial applications to cool water used in cooling systems.
The Role of Air Coolers in Industrial Applications
Air coolers, including fin fan coolers and dry coolers, are crucial in managing thermal performance across various industries. They operate effectively even under high pressure and extreme ambient air temperatures, making them suitable for diverse environments.
Air-cooled condensers also fall under this category, providing efficient cooling solutions without needing a water supply. Their design allows them to handle hot process fluids effectively while minimizing environmental impact.
Conclusion
Air fin coolers are a reliable solution for efficient heat exchange in various industrial applications. By understanding their components, benefits, and maintenance needs, you can optimize their performance in your operations.
For further assistance or to explore options tailored to your specific requirements, feel free to reach out to us at
United cooling systems! Our team is here to help you find the perfect cooling solution tailored to your needs.
