A pressure vessel is a closed container designed to hold gases or liquids at a pressure substantially higher or lower than the surrounding atmospheric pressure. Pressure vessel design and manufacturing is one of the most safety-critical engineering disciplines because failure can result in explosions, serious injuries, fatalities, and massive industrial damage.
At United Heat Exchangers Pvt. Ltd., we specialize in the design, fabrication, inspection, testing, and supply of ASME-compliant pressure vessels for chemical, oil & gas, pharmaceutical, food processing, fertilizer, power generation, and heavy engineering industries across India and overseas.
This complete guide explains:
Strict design and fabrication rules exist because:
We operate a dedicated heavy fabrication facility equipped with modern machinery for high-precision pressure vessel manufacturing.
At United Heat Exchangers Pvt. Ltd., we specialize in the design, fabrication, inspection, testing, and supply of ASME-compliant pressure vessels for chemical, oil & gas, pharmaceutical, food processing, fertilizer, power generation, and heavy engineering industries across India and overseas.
This complete guide explains:
- What a pressure vessel is
- International design codes and standards
- Types and configurations
- Design methodology
- Material selection
- Fabrication and welding
- Inspection and testing
- Safety systems
- Commercial and cost factors
- How to choose the right manufacturer
- Why United Heat Exchangers is a trusted pressure vessel supplier
Introduction: Why Pressure Vessel Design Is Critical to Industrial Safety
Pressure vessels store enormous amounts of energy in the form of pressurized fluids. Even a small miscalculation in thickness, welding, material choice, or inspection can result in catastrophic failure. Unlike ordinary storage tanks, pressure vessels operate under high internal or external pressure combined with temperature variations, corrosion, and cyclic loading.Strict design and fabrication rules exist because:
- Human life is at risk
- Equipment operates continuously under stress
- Industrial downtime due to vessel failure is extremely costly
- Regulatory authorities demand full compliance
What Is a Pressure Vessel? (Definition & Scope)
A pressure vessel is a container specifically designed to hold fluids (liquids or gases) at a pressure significantly different from ambient conditions. The pressure difference between the inside and the outside of the vessel creates mechanical stresses that must be safely contained by the vessel wall.Key Technical Terms Used in Pressure Vessel Engineering
- Design Pressure: Pressure used for thickness calculation
- MAWP (Maximum Allowable Working Pressure): Maximum safe operating pressure
- Design Temperature: Maximum or minimum operating temperature considered
- Corrosion Allowance: Extra metal added to compensate for material loss
- Joint Efficiency:Strength factor for welded joints
- Test Pressure: Pressure applied during hydrostatic testing
Typical Pressure Vessel Examples
- Reactors
- Heat exchanger shells
- Air receivers
- LPG storage bullets
- Surge drums
- Autoclaves
- Distillation columns
- Gas separators
Pressure Vessel Codes & Standards
All pressure vessels manufactured by United Heat Exchangers strictly comply with internationally recognized design codes and quality standards.ASME Boiler and Pressure Vessel Code (BPVC)
The most widely used standard worldwide is the ASME BPVC Section VIII, which governs the construction of pressure vessels.- Division 1: Conventional design, most common
- Division 2: Higher stress, more detailed stress analysis
- Division 3: Very high-pressure vessels
- Mechanical design formulas
- Material specifications
- Welding qualifications
- Heat treatment
- Inspection and non-destructive testing
- Pressure testing
- Certification & stamping
Other Applicable Standards
- IBR & IS Codes (India)
- PED (Europe)
- AD 2000 (Germany)
- EN Standards
- TEMA (for heat exchanger pressure vessels)

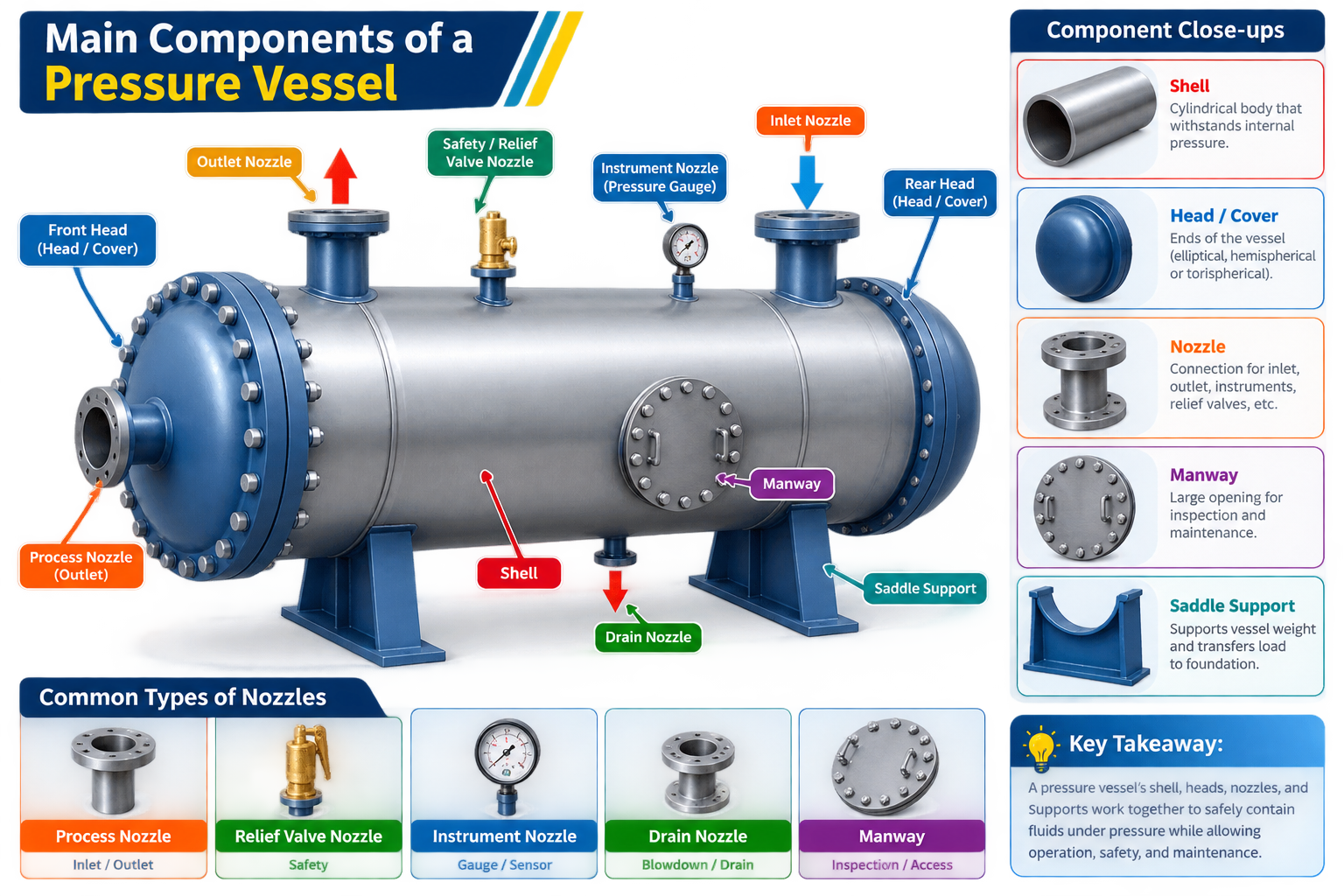

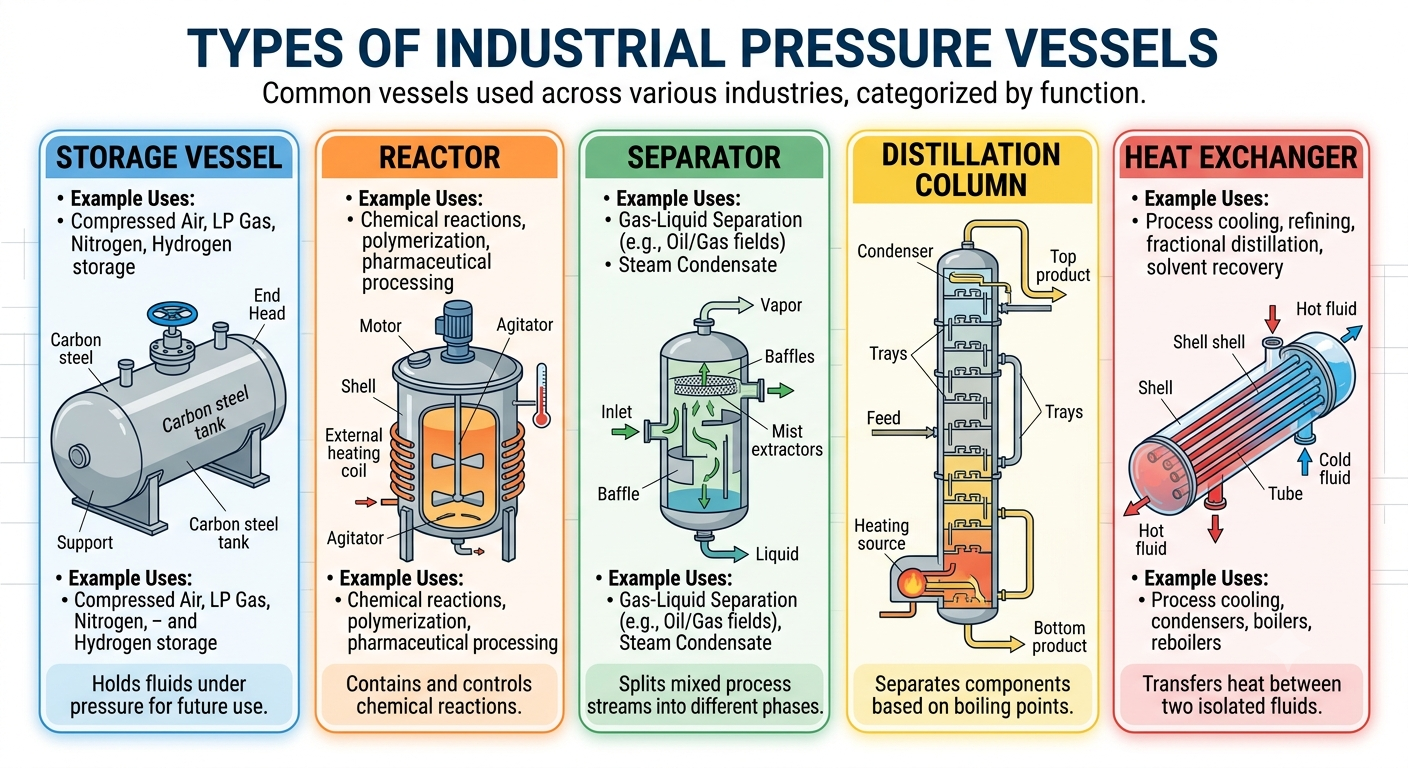

Types & Configurations of Pressure Vessels
1. Cylindrical Pressure Vessels
The most widely used form due to ease of fabrication, uniform stress distribution, and cost efficiency.Horizontal cylindrical vessels Vertical cylindrical vessels
2. Spherical Pressure Vessels
Used for extremely high-pressure gas storage such as LPG, oxygen, and ammonia. Spherical geometry provides uniform stress but requires higher fabrication complexity.3. Jacketed Pressure Vessels
Provided with external jackets for heating or cooling. Common in chemical reactors and pharmaceutical processing.4. Coil-Type Pressure Vessels
Used when internal heating/cooling coils are required.5. Multilayer & Forged Pressure Vessels
Used for very high-pressure services such as hydrogen, synthesis gas, and specialty chemical processing.Basic Principles of Pressure Vessel Design
Pressure vessel design involves calculating wall thickness, stresses, and structural integrity under all possible operating conditions.Thin-Walled Cylinder Design
Used when wall thickness is relatively small compared to diameter.- Hoop Stress (Circumferential): σₕ = (P × D) / (2 × t)
- Longitudinal Stress: σₗ = (P × D) / (4 × t)
- P = Internal pressure
- D = Internal diameter
- t = Wall thickness
Key Design Inputs
- Internal and external pressure
- Design temperature
- Corrosion allowance
- Allowable material stress
- Weld joint efficiency
- Cyclic fatigue
- Seismic and wind loads (for tall vertical vessels)
- Nozzle reinforcement calculations
Materials Used in Pressure Vessel Manufacturing
Correct material selection is essential for safety, durability, and corrosion resistance.Common Materials Used by United Heat Exchangers
- Carbon Steel: Most economical for air, steam, water, oil
- Stainless Steel (SS 304, 316, 321, 904L): Corrosion-resistant for pharma and chemicals
- Low Alloy Steels: High-temperature and pressure services
- Duplex & Super Duplex Steels: Offshore, marine and chloride environments
- Nickel Alloys (Inconel, Hastelloy, Monel): Extremely corrosive and high-temperature applications
Factors Governing Material Selection
- Operating pressure and temperature
- Chemical composition of fluid
- Corrosion and erosion potential
- Fabrication feasibility
- Cost and availability
We operate a dedicated heavy fabrication facility equipped with modern machinery for high-precision pressure vessel manufacturing.

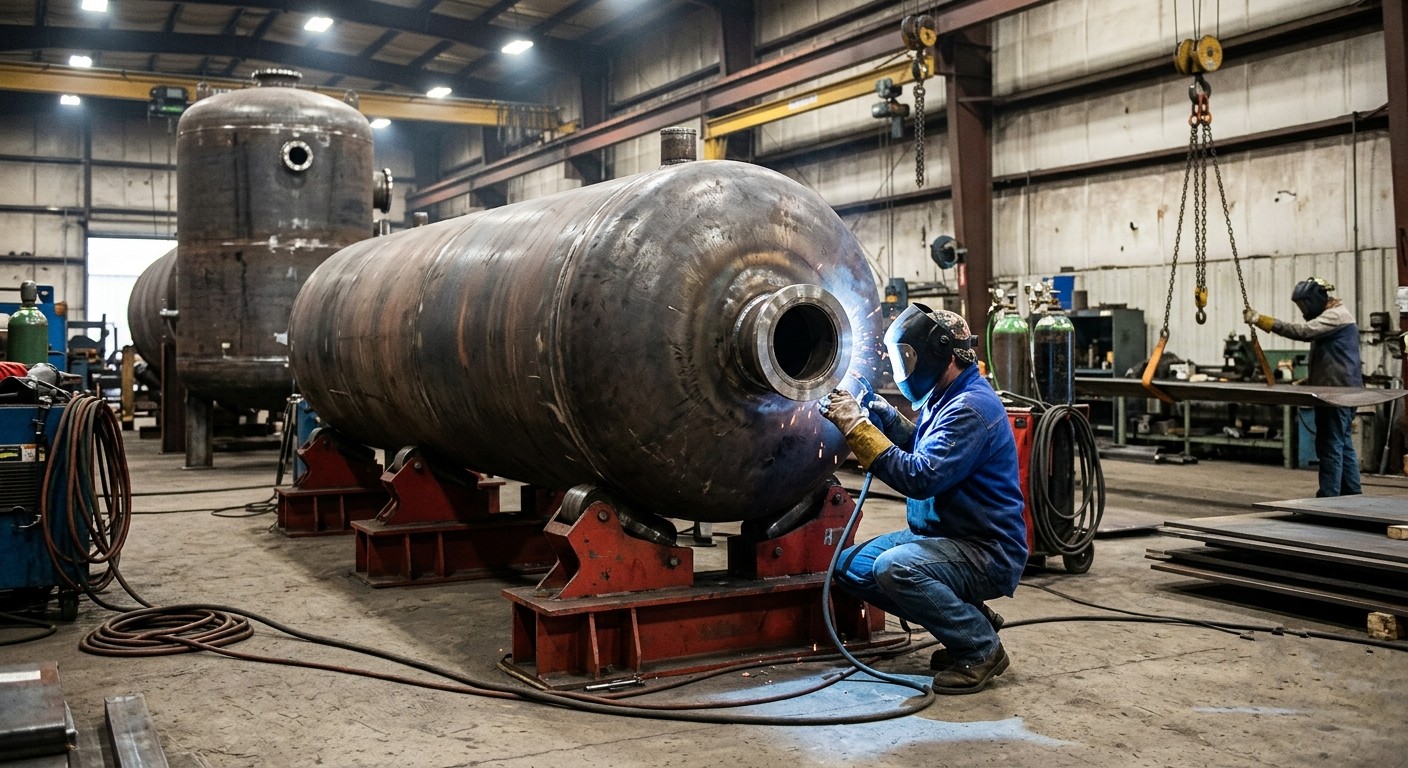

Step-by-Step Fabrication Process
- Plate cutting using CNC plasma/oxy-fuel machines
- Shell rolling using hydraulic plate rolling machines
- Longitudinal and circumferential seam welding
- Dished end forming (torispherical, ellipsoidal, hemispherical)
- Nozzle fabrication and reinforcement
- Internal support and baffle installation
- Post Weld Heat Treatment (PWHT), when required
- Surface finishing and painting
- Inspection and testing
- Final documentation and dispatch
Welding Standards & Quality Control
All welding operations at United Heat Exchangers strictly follow:- ASME Section IX
- Approved Welding Procedure Specifications (WPS)
- Procedure Qualification Records (PQR)
- Certified welders with continuous performance qualification
- Controlled pre-heat and post-heat cycles
- Welding consumable traceability
Inspection, Testing & Quality Assurance
Pressure vessels supplied by United Heat Exchangers undergo rigorous inspection at every stage.Non-Destructive Testing (NDT) Methods
- Radiographic Testing (RT)
- Ultrasonic Testing (UT)
- Magnetic Particle Testing (MT)
- Liquid Penetrant Testing (PT)
- Visual Inspection (VT)
Hydrostatic Testing
Every vessel is filled with water and pressurized to 1.3 to 1.5 times the design pressure to prove mechanical integrity and leak tightness.Pneumatic Testing
Performed when hydro test is not feasible, under strict safety protocols.Safety Features in Pressure Vessels
- Pressure Relief Valves (PRV)
- Rupture Discs
- Emergency Venting Systems
- Instrumentation and Alarm Systems
- Inspection Ports & Safety Interlocks
Industrial Applications of Pressure Vessels
United Heat Exchangers manufactures pressure vessels for:- Oil & Gas Processing Units
- Chemical & Petrochemical Plants
- Fertilizer & Ammonia Plants
- Pharmaceutical & Biotech Facilities
- Food & Beverage Processing
- Power Generation Stations
- Cryogenic Gas Storage
- Polymer & Resin Manufacturing
Pressure Vessel vs Storage Tank
Feature | Pressure Vessel | Storage Tank |
|---|---|---|
Operating Pressure | High | Near atmospheric |
Governing Code | ASME Section VIII | API 650 |
Wall Thickness | Thick | Thin |
Safety Risk | Very High | Moderate |
Cost | High | Lower |
Typical Pressure Vessel Datasheet Parameters
- Design Pressure: 25 bar
- Design Temperature: 350 °C
- Material of Construction: Carbon Steel SA 516 Gr. 70 with SS 316L Cladding
- Internal Diameter: 2,400 mm
- Length: 9,000 mm (9 Meters)
- Corrosion Allowance: 5 mm
- Code: ASME Section VIII Div 1
- Test Pressure: 37.5 bar (1.5 × Design Pressure)
- NDT Requirement: 100% RT + UT + MT + PT
- PWHT: Yes (Furnace Controlled)
- Surface Finish: Internally Pickled & Passivated / Externally Heavy-Duty Epoxy Painted
Commercial Factors Affecting Pressure Vessel Cost
- Vessel diameter and thickness
- Operating pressure and temperature
- Material grade
- Code compliance level
- Extent of NDT
- Heat treatment requirements
- Third-party inspection
- Transportation & site erection
How to Choose the Right Pressure Vessel Manufacturer
Before placing an order, buyers must verify:- ASME Code compliance
- ISO-certified quality systems
- In-house design capability
- Fabrication infrastructure
- Testing facilities
- Material traceability
- After-sales engineering support
- Past project experience
Why Choose United Heat Exchangers Pvt. Ltd.
United Heat Exchangers is a trusted Indian manufacturer specializing in custom-engineered pressure vessels and heat transfer equipment.Our Strengths
- In-house mechanical design & engineering
- ASME-compliant fabrication
- Advanced welding and NDT facilities
- Carbon steel, stainless steel & alloy vessel manufacturing
- Custom pressure vessel solutions for critical industries
- On-time delivery & global export capability
- Complete documentation & quality assurance
Pressure Vessel FAQs
- What is the maximum pressure a pressure vessel can handle? Depending on the design code, materials and thickness, pressure vessels can safely handle extremely high pressures, from vacuum up to several thousand bar.
- Which ASME code applies to pressure vessels? ASME Section VIII Division 1, 2, or 3 depending on the application.
- Why is hydrostatic testing mandatory? It verifies structural integrity and leak-tightness before commissioning.
- What is corrosion allowance in pressure vessel design? Additional thickness added to compensate for corrosion during service life.
- What is PWHT? Post Weld Heat Treatment relieves residual welding stresses and improves metallurgical properties.
Get a Custom Pressure Vessel Quote from United Heat Exchangers
If you require a custom-designed, ASME-compliant pressure vessel, United Heat Exchangers provides:- Complete mechanical & thermal design
- Material selection support
- CAD fabrication drawings
- Certified fabrication under third-party inspection
- Hydro and pneumatic testing
- Full documentation and export packaging
